A visible water stain on a ceiling below a balcony confirms there is a leak — but it tells you almost nothing about where the water is actually entering. Balcony leaks are notoriously difficult to trace because water travels along reinforcement, between layers of screed and membrane, and through hairline cracks before appearing far from the source. Misdiagnosing the entry point leads to costly, ineffective repairs that leave the real problem untouched.

Atomic Projects uses systematic water testing and moisture diagnostics to find the true source of balcony leaks before any remediation is scoped or contracted. Getting the diagnosis right is not optional — it is the foundation of an effective, lasting repair. Once the source is confirmed, investigation findings typically lead into screed and fall correction or full waterproofing membrane replacement as the remediation scope.

How We Investigate Balcony Leaks

• Visual & Tap Testing: Systematic inspection of all balcony surfaces, edges, penetrations, joints, thresholds, and upstands. Tap testing identifies delamination and hollow areas in tiles and screeds. Crack mapping records the pattern and width of visible defects.

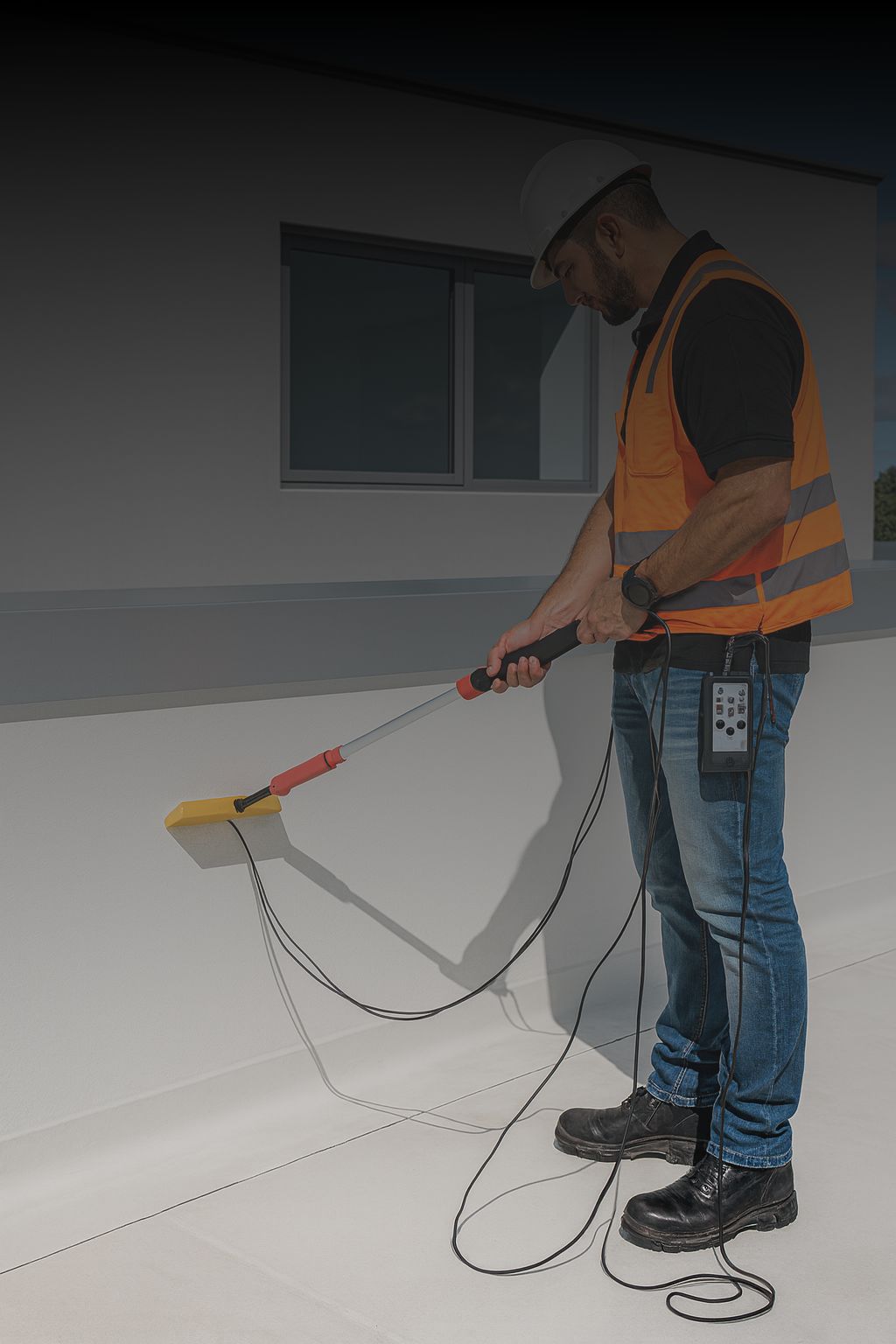

• Moisture Meter Scanning: Non-invasive moisture meters are used to map dampness in substrates, soffits, and internal ceiling linings to identify the likely travel path of the water and narrow the source zone.
• Water Testing (Flood or Trickle): Controlled water introduction — either ponding the balcony surface or isolating individual elements (drain, threshold, upstand) — confirms which component is responsible for the leak. This removes guesswork from the investigation.
• Thermal Imaging: Infrared thermography is deployed in complex cases to map moisture distribution through slab and wall elements without invasive opening up. This is particularly useful for podium slabs and large balcony areas.
• Invasive Investigation Where Required: Where non-invasive testing cannot locate the source, targeted core samples or tile lift areas are used to inspect the membrane, screed layers, and substrate condition at the point of suspected failure.

Frequently Asked Questions

Can't we just replace the waterproofing without investigating first?

You can — but you risk replacing a membrane that isn't the problem. Many balcony leaks originate from failed threshold detailing, cracked screed joints, blocked or overflowing drains, or balustrade fixing penetrations. A membrane replacement alone won't fix these. A proper investigation costs far less than a second round of remediation after the first repair fails to stop the leak.

How long does a balcony leak investigation take?

A single balcony can typically be investigated in half a day to a full day depending on complexity. For a building-wide investigation across multiple balconies, we work systematically floor-by-floor and provide a consolidated report covering all units inspected, findings, likely causes, and recommended remediation scope.

What does an investigation report include?

Our reports include photographic evidence of defects, moisture mapping results, water test observations, identification of the probable leak source(s), and a recommended scope of remediation works. For strata buildings, this provides the evidence base for scoping, tendering, and obtaining owners corporation approval for repairs.

Do we need to vacate the apartment during testing?

Not for most investigation methods. Flood testing of the balcony surface requires the balcony to be unoccupied during the test period, but residents can typically remain inside. Where invasive investigation is required, residents will need to provide access to the internal ceiling space or affected room.

Can the same company investigate and then carry out the repairs?

Yes, and this is generally the most efficient approach. Atomic Projects provides both investigation and remediation services, so the team doing the repairs fully understands the cause of the problem. Alternatively, we can provide investigation reports that are used to tender remediation works to multiple contractors.

Accurate diagnosis is the single most important step in any balcony leak repair. Atomic Projects has over 10 years of experience investigating and remediating balcony defects across Sydney's residential and commercial building stock. As a Class 2 Registered Builder, we provide investigation reports that are suitable for use in strata defect processes, insurance claims, and NCAT proceedings. Contact us to arrange a balcony leak investigation for your building.
