Cracking in masonry and concrete walls is one of the most common — and most misread — structural defects in Sydney buildings. Not every crack is dangerous, but a crack that is still moving, stepping through brickwork, or opening across a concrete element is a sign the structure has lost continuity across that line. Crack stitching restores it.
Our crack stitching service re-ties cracked masonry and concrete using helical stainless-steel reinforcing bars bonded into the wall across the crack. The bars span the crack and redistribute load back into sound material, re-establishing structural continuity without the cost and disruption of demolishing and rebuilding the wall.
Crack stitching treats the crack, not its cause — so we always establish why the wall cracked first. Where movement is ongoing (subsidence, footing failure, reactive-clay heave), stitching is paired with the works that address the cause, so the repair holds rather than re-cracking beside the old line.
How We Deliver Crack Stitching
- Establish the cause. We assess the crack pattern and, where movement may be active, monitor it before committing to a permanent repair — stitching a still-moving crack without addressing the cause simply moves the problem.
- Cut the slots. Horizontal slots are cut into the mortar bed joints in masonry, or into the concrete at set vertical centres crossing the crack, then cleaned and flushed of dust.

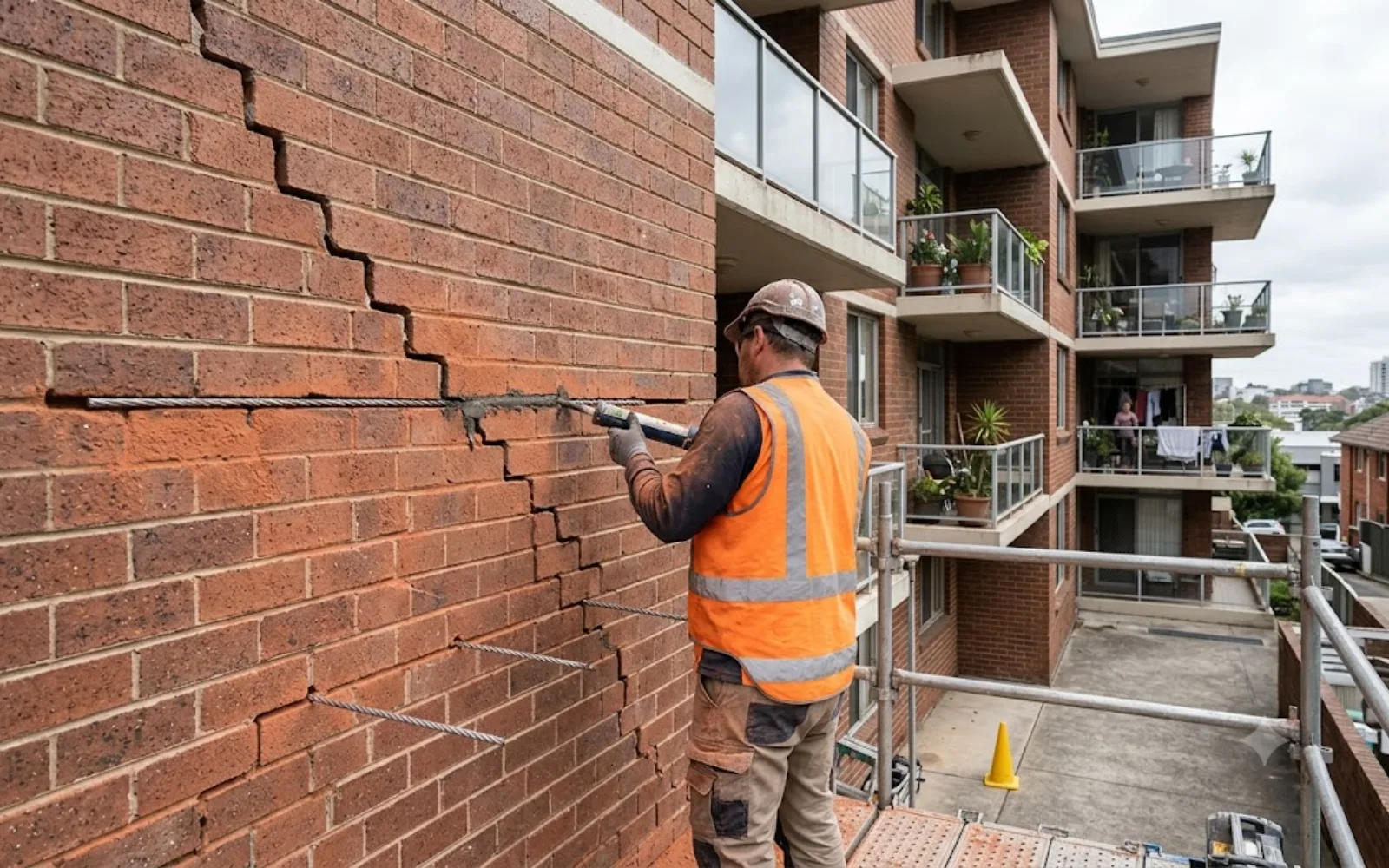

- Bed the helical bars. A bead of thixotropic cementitious grout is gunned into each slot, the stainless helical bar is pushed in to develop bond on both sides of the crack, and a second bead covers the bar.
- Repeat up the wall. Bars are installed at regular vertical spacing so load is transferred across the full height of the cracked zone, not just at one point.
- Repoint and make good. Joints are repointed to match and the repair is concealed, so the finished wall reads as sound masonry.
Where Crack Stitching Works
- Stepped cracking in brickwork — around openings, at corners, and along wall junctions.
- Cracked concrete and blockwork — where continuity across the crack needs restoring.
- Dropped lintels and openings — forming a masonry beam over openings that have cracked.
- Bulging and wall-tie repairs — often combined with re-tying and restraint work.
Frequently Asked Questions
Does crack stitching fix what caused the crack?
No — and any contractor who tells you it does is skipping the most important step. Crack stitching restores structural continuity across the crack, but if the wall is cracking because of ongoing footing movement, reactive-clay heave, or another active cause, that cause has to be addressed as well. This is why we investigate and, where needed, monitor movement before stitching, and pair the stitching with underpinning or footing repair when subsidence is the cause.
How disruptive is crack stitching for residents?
Minimal. The work is carried out from one face of the wall, generates limited dust when slots are cut with extraction, and doesn't require the wall to be demolished or the space vacated. Most cracked zones are stitched within a day or two, and finished repairs are concealed within the mortar joints.
Is stitching a permanent repair or a patch?
Where the cause has been addressed, a correctly installed helical stitching system is a permanent, engineered repair — the stainless bars don't corrode and the restored wall carries load as intended. It is a genuine structural solution, not a cosmetic filler over the crack.
Who is responsible for cracking in a strata building?
Structural walls are almost always common property, so investigating and repairing structural cracking is an owners corporation responsibility under the NSW Strata Schemes Management Act 2015, even where the crack shows inside a single lot. We document the defect, cause and repair so the committee has a clear basis to authorise and fund the works from the capital works fund.
